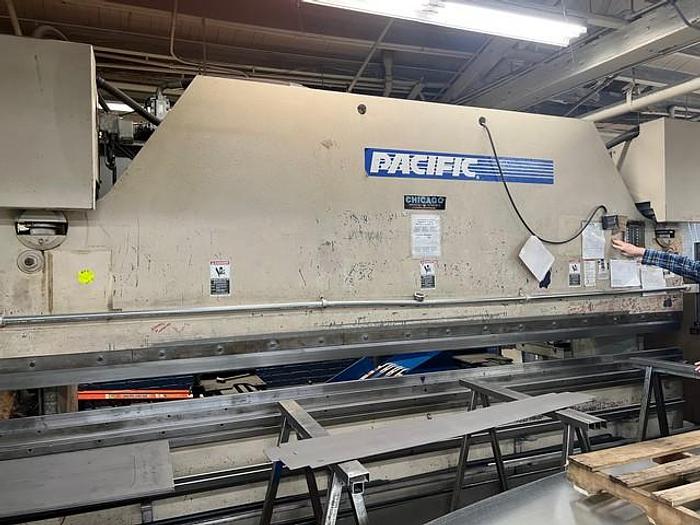

1993 Pacific J230-16
No longer available
1993 Pacific J230-16
Specifications
| Manufacturer | Pacific |
| Model | J230-16 |
| Year | 1993 |
| Condition | Used |
| Capacity | 230 Ton |
| Distance Between Housings | 14' 5 1/2" |
| Overall Bed Length | 16' |
| Maximum Stroke (adjustable) | 10" |
| Throat Depth | 8" |
| Open Height | 15" |
| Closed Height | 5" |
| Ram Speed, High | 101 IPM |
| Ram Speed, Medium | 49 IPM |
| Ram Speed, Low | 14 IPM |
| Return | 95 IPM |
| Motor | 30 HP |
| Electrics | 230/460/60/3 |
Additional Features
Equipped With:

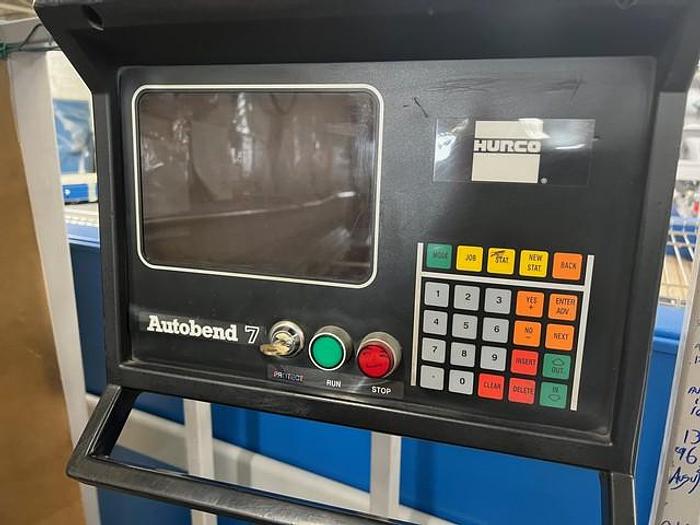

Hurco 7 2-Axis CNC Control,
Adjustable Tonnage Control with Gauge,
Low / Medium / High Speed Options,
Adjustable Stop and Speed Change Points,
Fine Tilt on Ram,
Remote Foot Pedal,
Upper Sectional Ram Clamps,
Lower Die Holder
