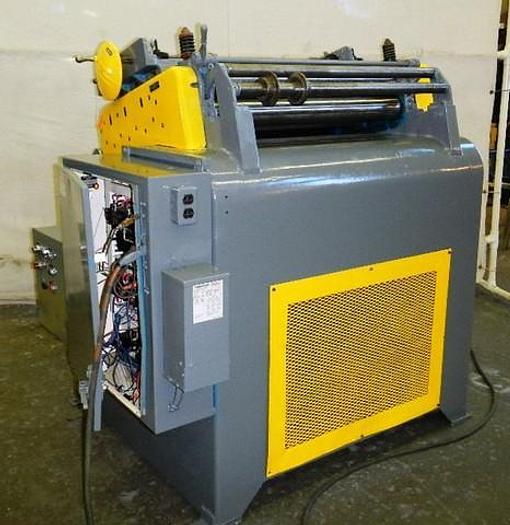

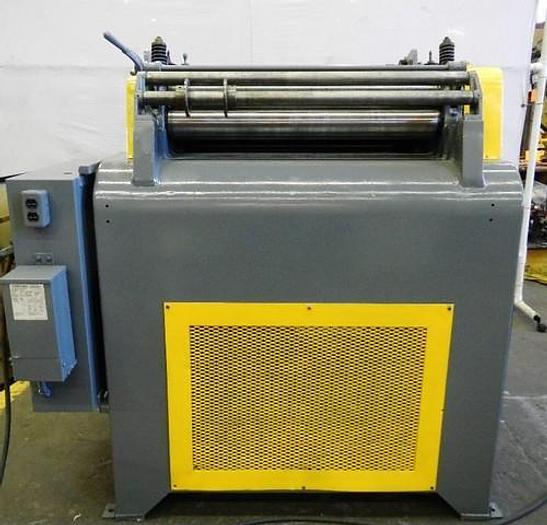

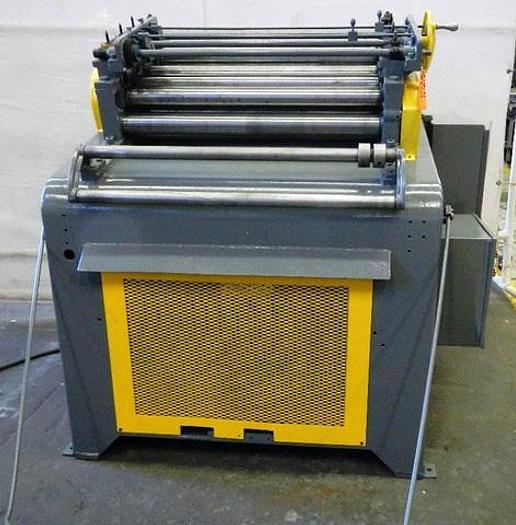

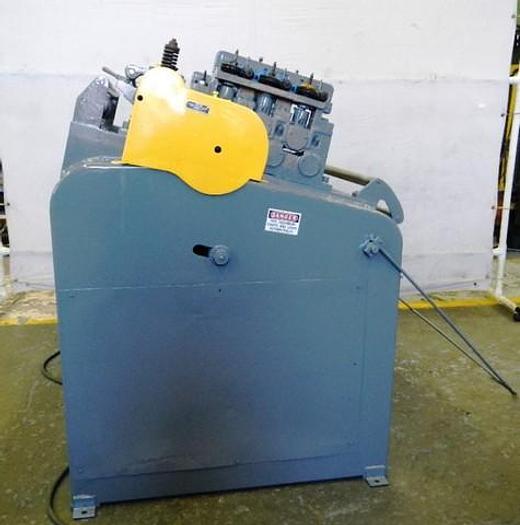

Littel Model 436-7PD Straightener

orCall 630-690-7986

Specifications

ManufacturerLittle Model
Model436-7PD
Year1980
ConditionUsed
Max thickness at full width .090"

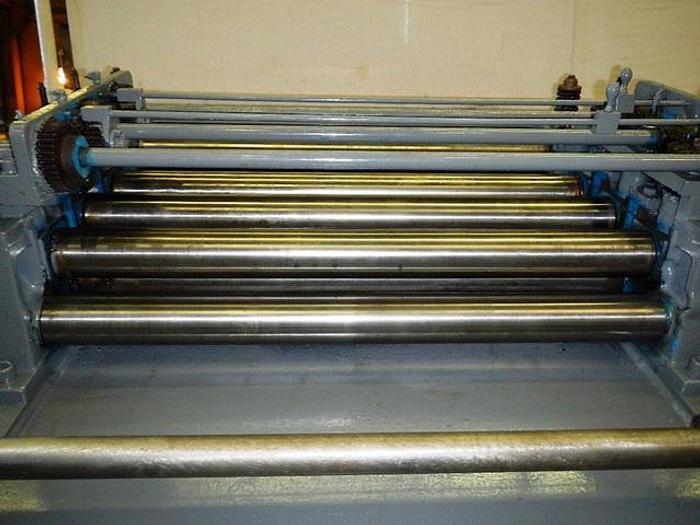

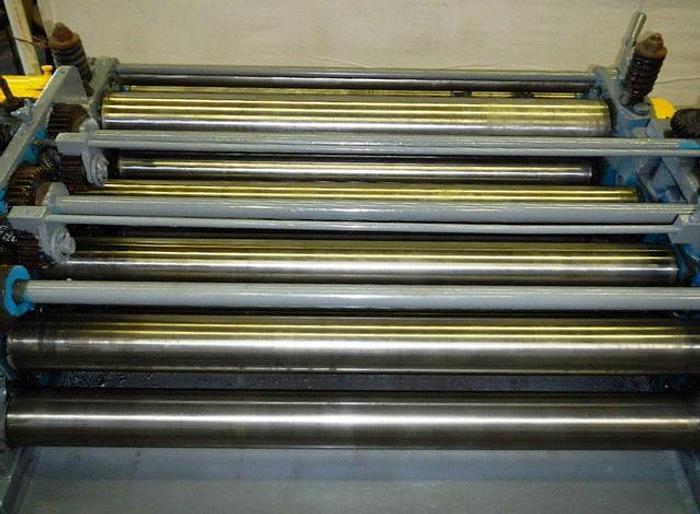

Number of rolls7 (3 over 4)
Diameter of straightening rolls3.125"
Diameter of pinch rolls4.25"
Straightening roll centers5 1/2"
Pass line56"
Main motor5 hp
Line speed12 - 72 FPM (variable)
Weight3,600 lbs.
Max width36"
Dimensions48" x 54" x 55" high

Additional Features

Equipped With:
Entry Pinch Rolls
Exit Cascade Rolls

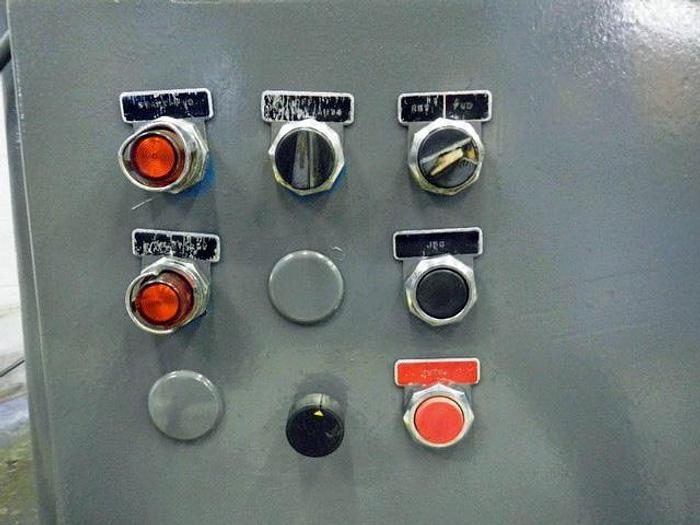

Electric Variable Speed Drive
Forward / Reverse
Auto / Manual
Jog for Forward & Reverse
Loop Control Arm,
Adjustable Side Edge Guides
Adjustable Upper Rolls
Guarding

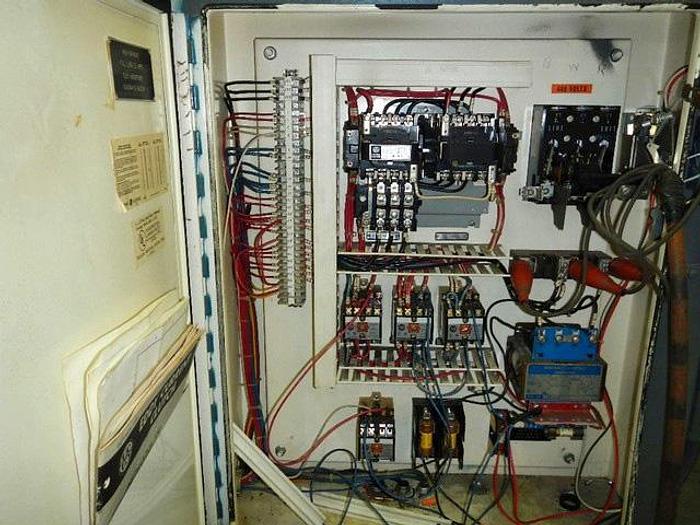

Electrical Schematics
