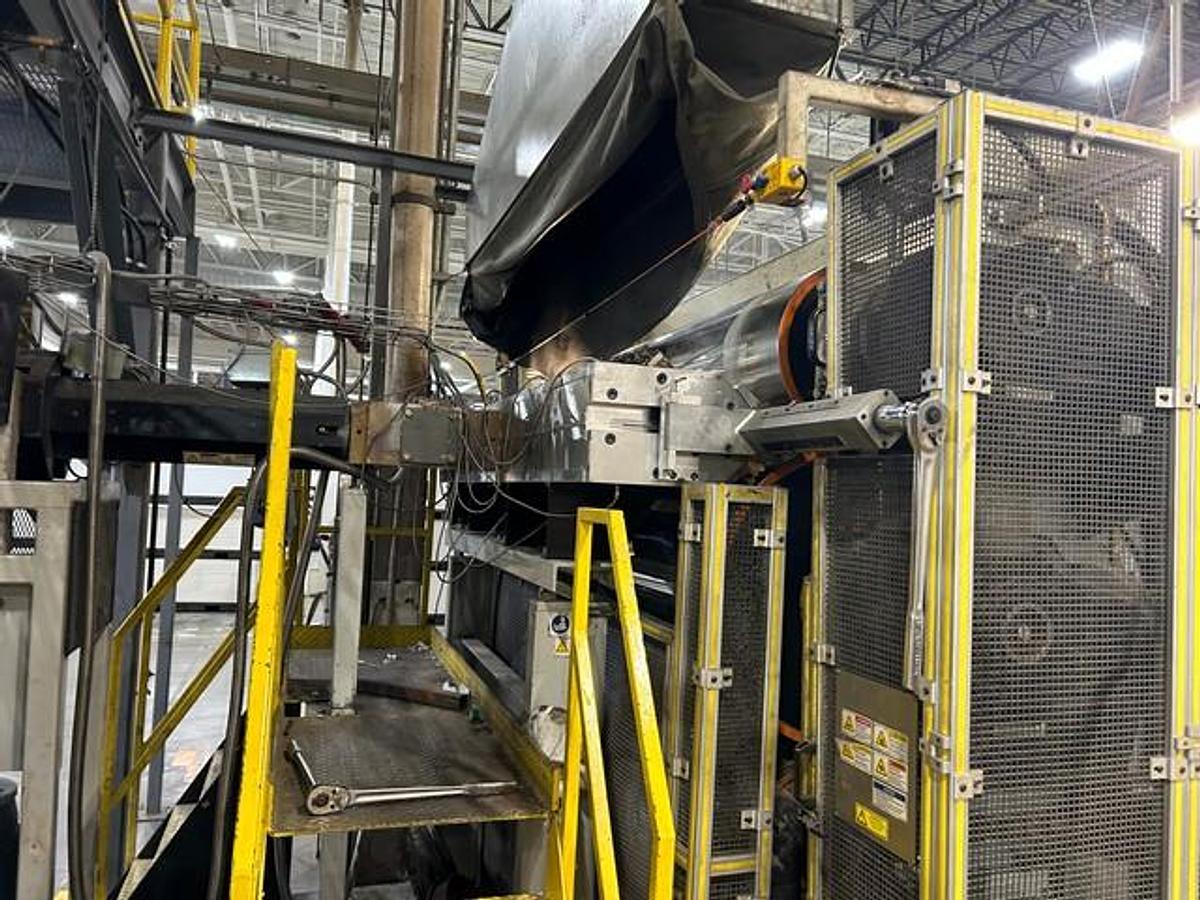

2018 Davis-Standard Co-Extrusion Sheet Line

DESCRIPTION

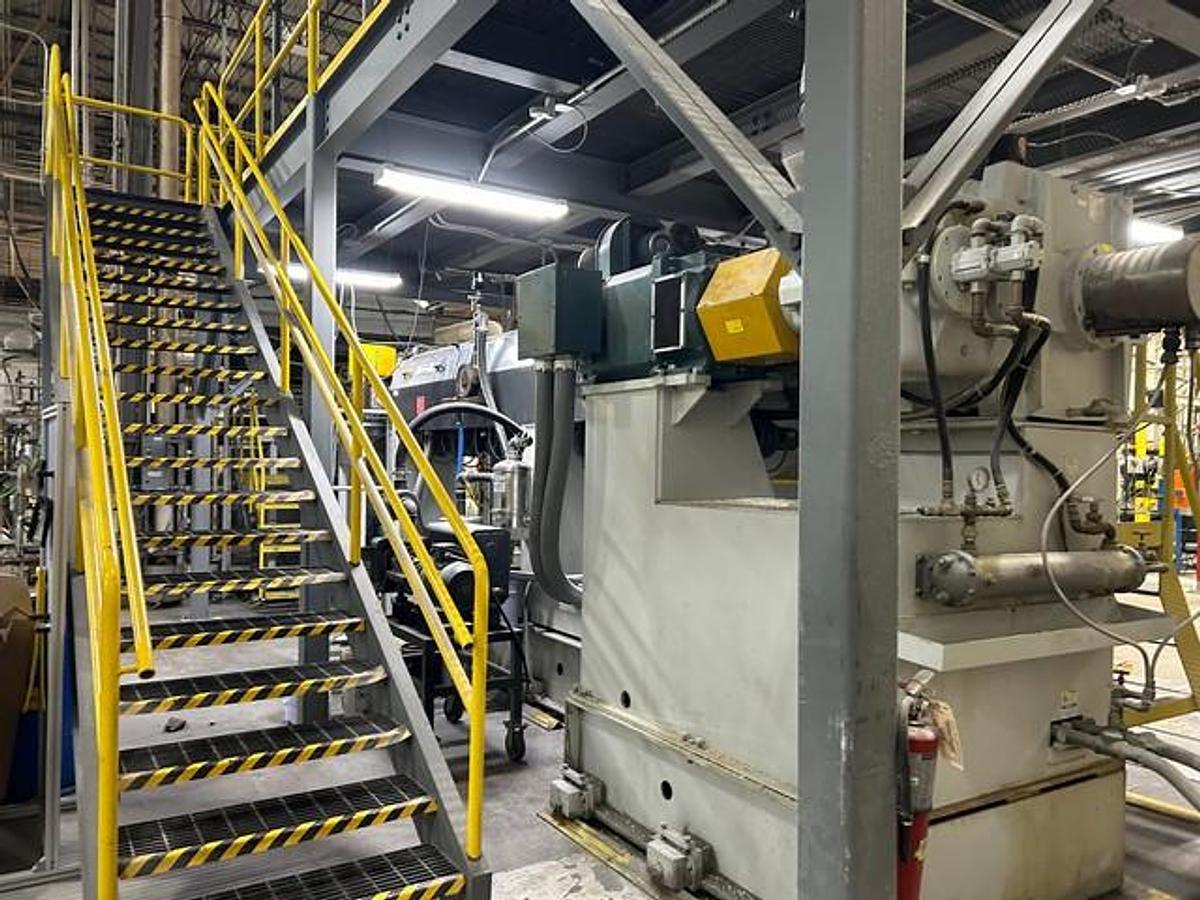

6 inch (150 mm), 34:1 L/D, Thermatic III Air Cooled Extruder “A” – Vented
• 500 HP (373 kW) Yaskawa A1000 AC Drive System with Line Choke

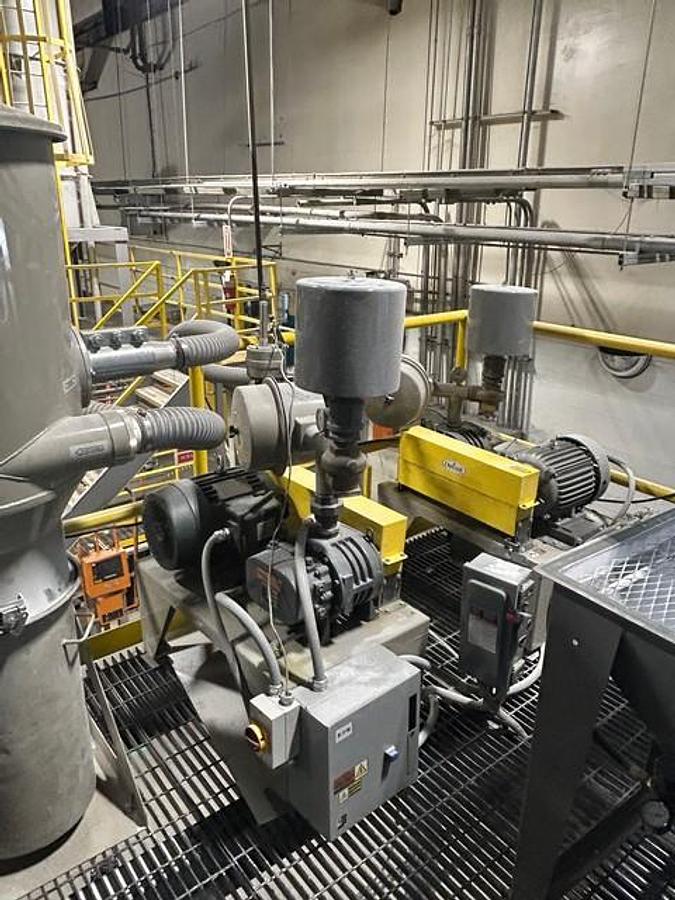

• 7.5 HP Vacuum System with Vent Plug
• Two Stage Extruder Screw

2.5 inch (65 mm), 34:1 L/Dm Thermatic III Air Cooled Extruder “B” – Vented
• 75 HP (55.5 kW) Yaskawa A1000 AC Drive System with Line Choke
• 3 HP Vacuum System with Vent Plug
• Two Stage Extruder Screw

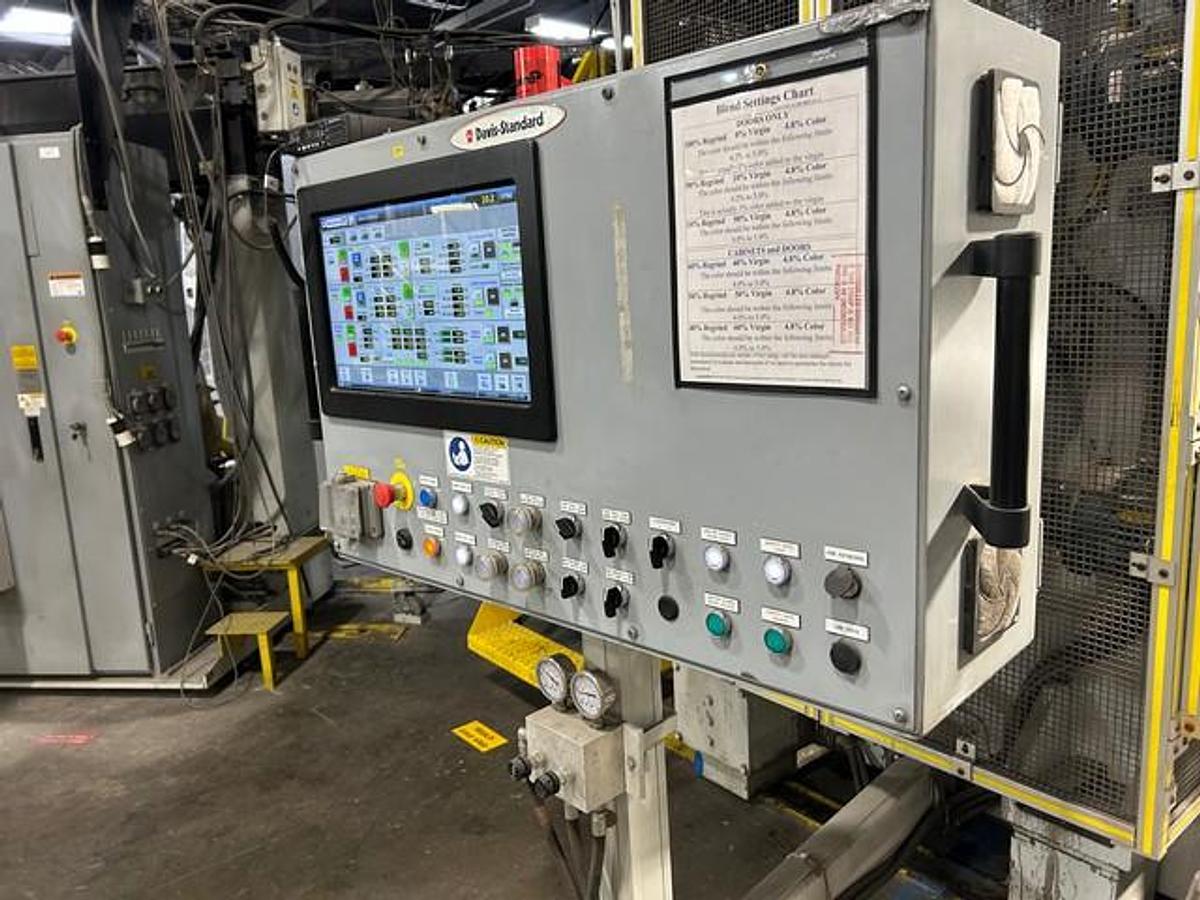

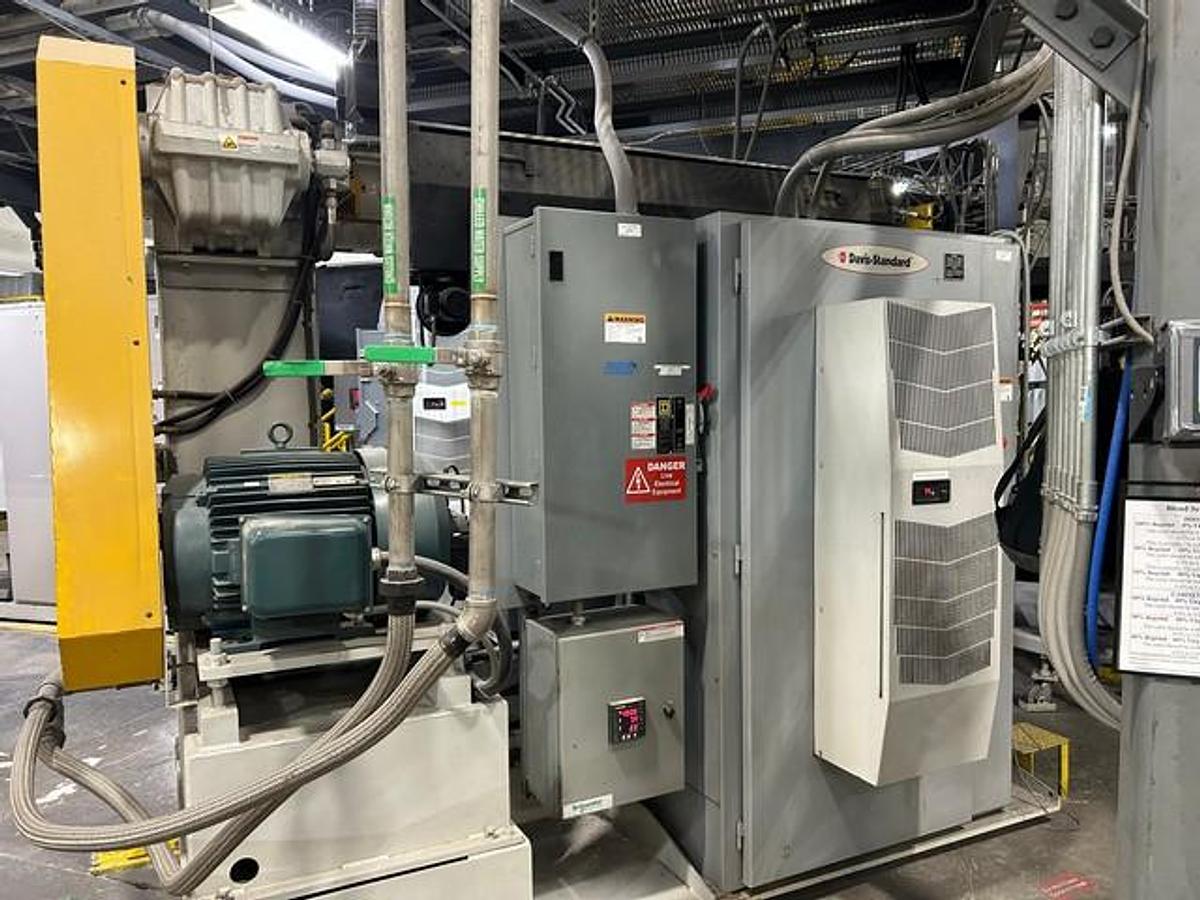

Davis-Standard EPIC III Control Panel
• EPIC Mounted in Swing Arm Located on Sheetline Cabinet
• Pre-wired and Pre-mounted Control and Drive Cabinets
• Water to Air Heat Exchangers for Control and Drive Cabinets

Screen Changer Package
• Xaloy EH-60 Model Hydraulic Screen Changer A
• Xaloy EH-25 Model Hydraulic Screen Changer B
• Common Hydraulic Power Unit

Polymer Melt Pump System
• 6 inch Extruder Pump System
• Valve Adapter Network
• Static Mixer in Downstream Adapter

Polymer Melt Pump System
• 2 1/2 inch Extruder Pump System
• Valve Adapter Network
• Static Mixer in Downstream Adapter

EDI 2-Layer Ultraflow I A/B Co-extrusion Block

EDI 2311 mm (91 inches) Wide Sheet Die
• External Fixed Side Mounted Deckling - 10inches per side
• Heavy Duty Die Cart with Work Platform
 

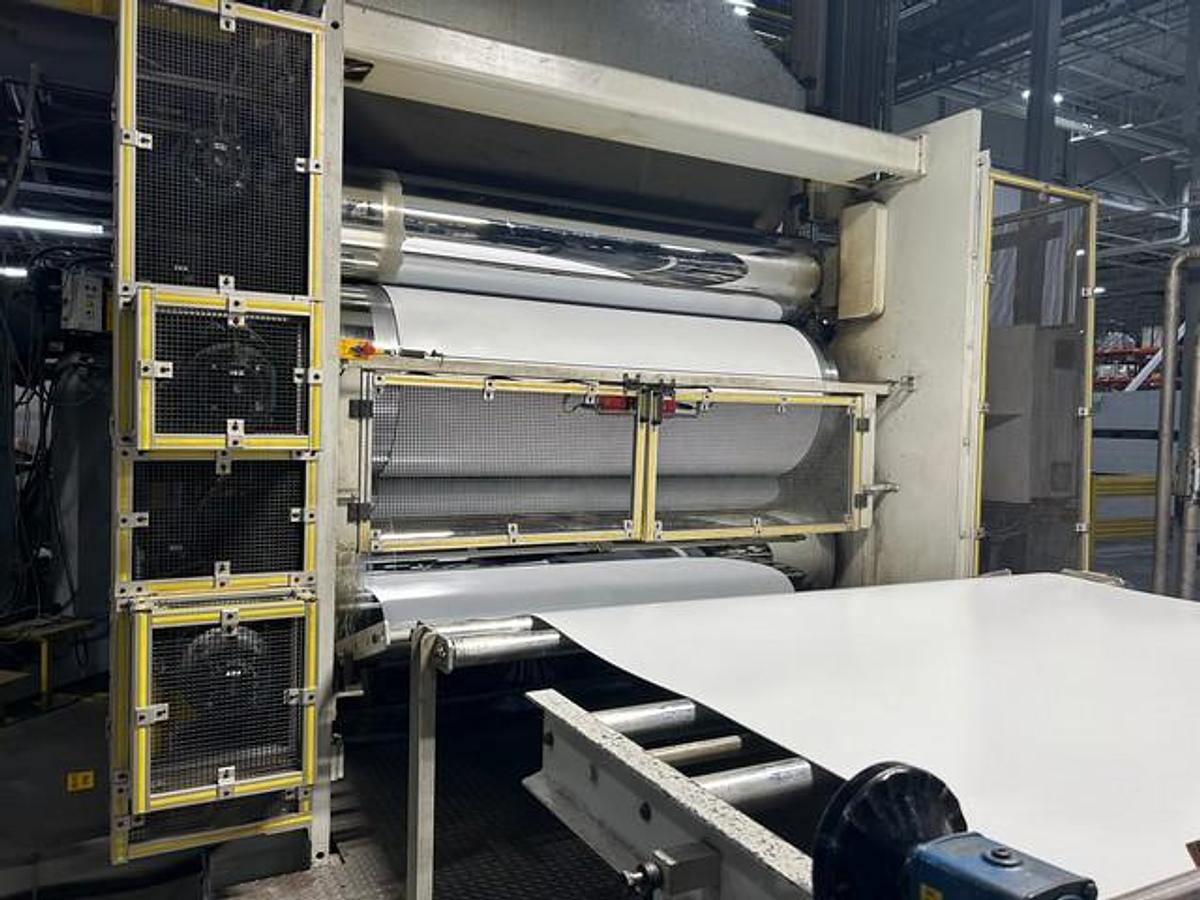

91 inch (2311 mm) Wide XP EXPRESS® PS Series Roll Stand System
• 18 inch (457 mm) Diameter Top, Cooling Roll
• 30 inch (762 mm) Diameter Middle & Bottom Cooling Rolls
• J-Stack Upstack Orientation
• Individual Roll Drive System
• 3 Zone Temperature Control Unit
• Motorized Roll Gap Adjustment
• Two Dual Static Bars
• Provision for Gauge Mounting
• 50 Foot (15.2 meter) long Telescoping Conveyor
• Five (5) Sets Fan Banks - High Intensity
• Pull Roll Stand

Edge Trim Granulation System - Free Standing

NDC Model 8100xTDi /XRB X-Ray Thickness Measurement System

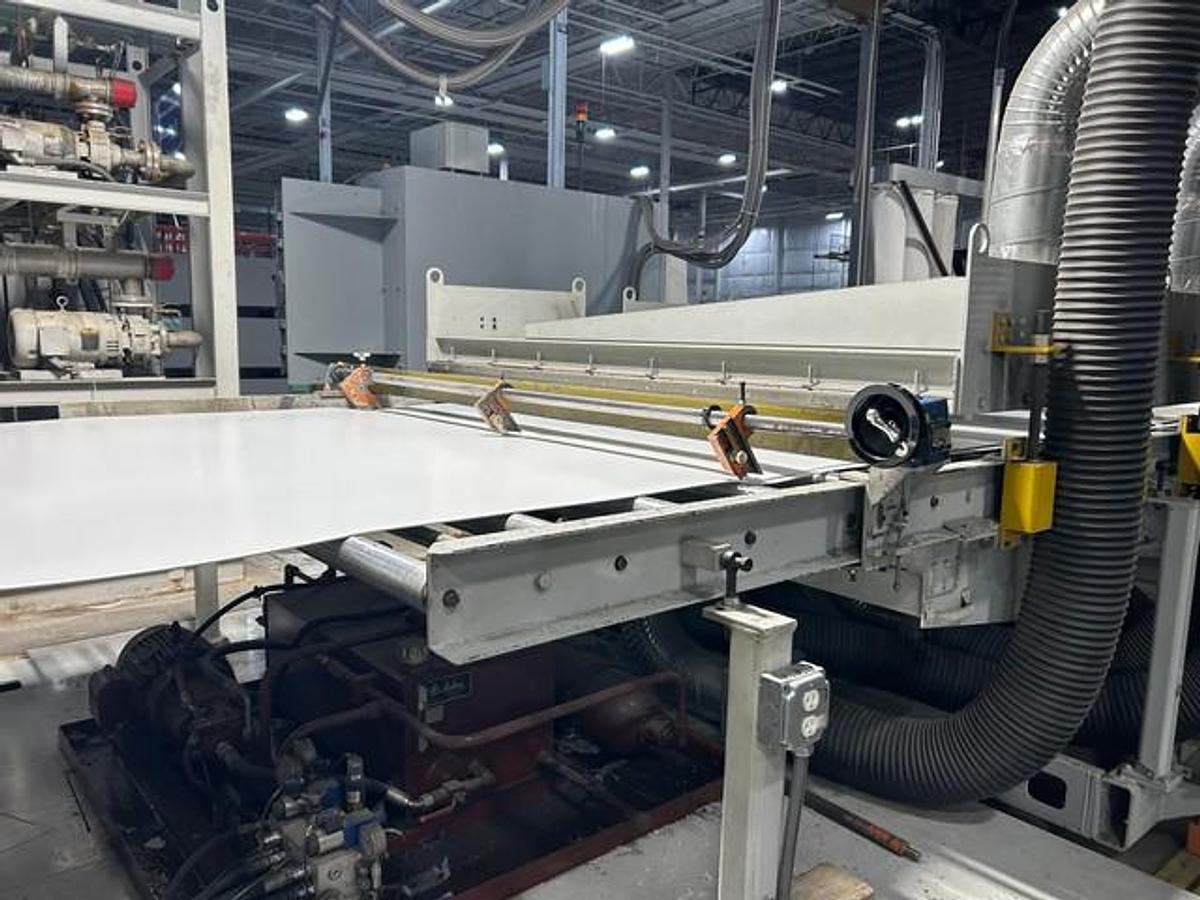

Mechanical Power Shear – maximum 96” Width Cut

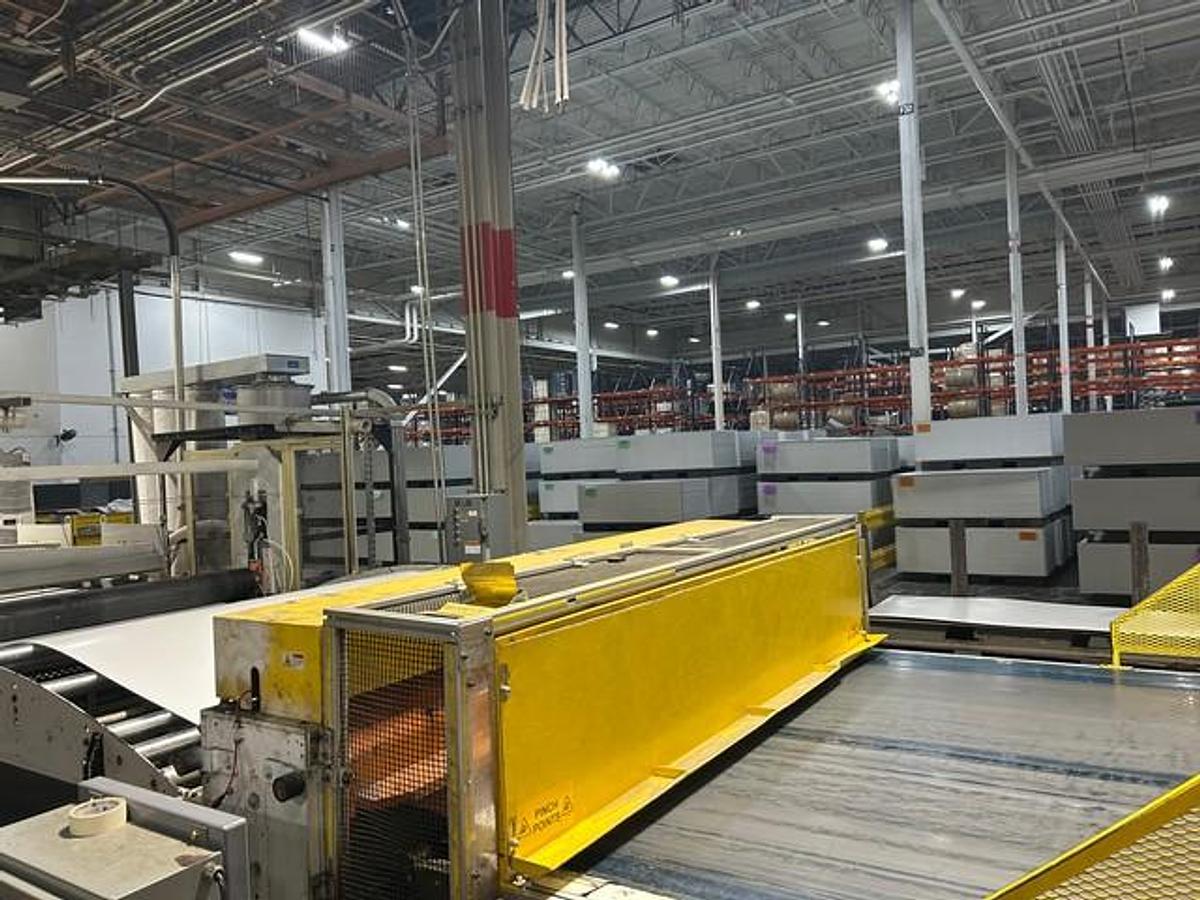

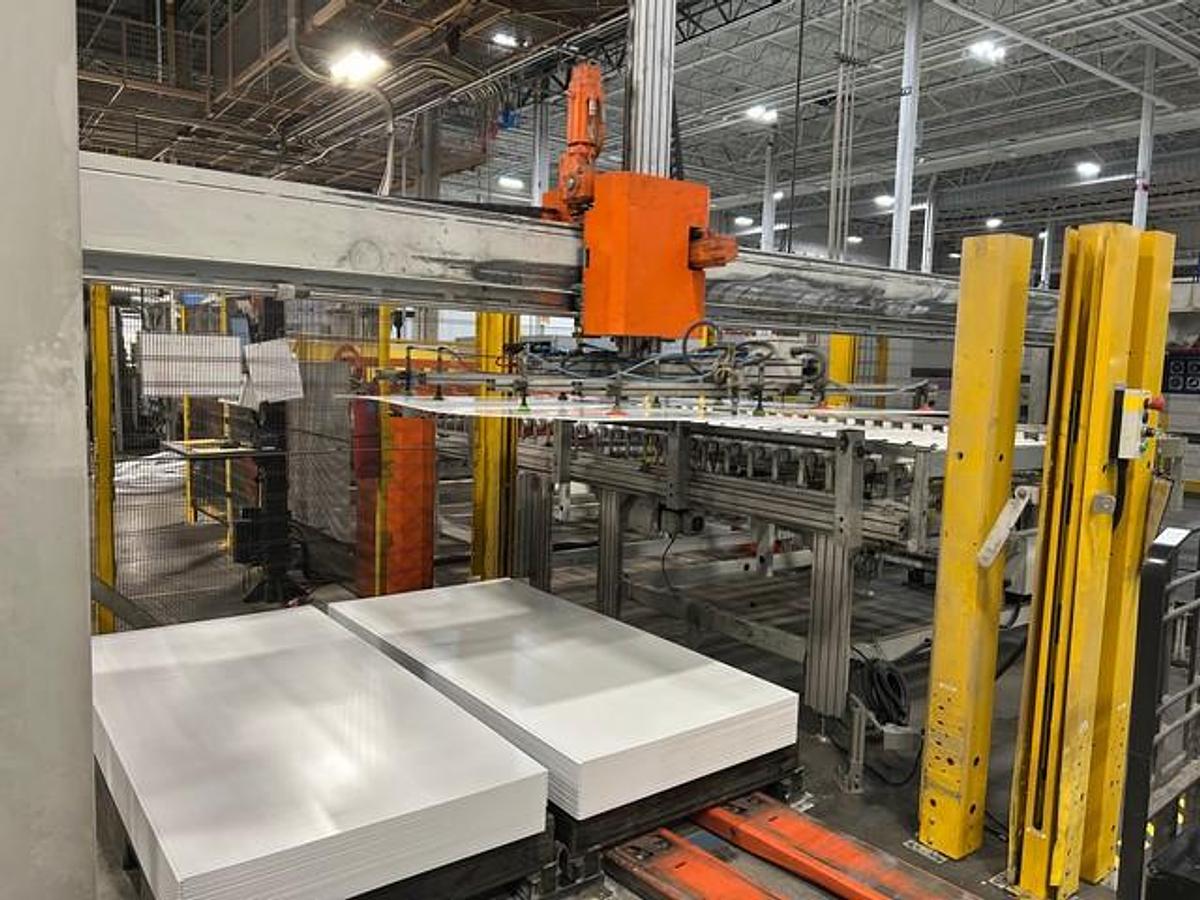

High Speed Gantry Sheet Inverter/Stacker System
• Rotary Arm Inverter/Vacuum Sheet Stacker
• 24 inches Sheet Stack height
• Gantry Style System
• Doors 1mm x 842mm x 1940mm if double stack up to 930 doors per hour
• Cabinets 3.3mm x 939mm x 1939 mm single stack up to 260 sheets per hour
• Equivalent to 1600 kilos per hour

Conair Material Blending and Handling System
• Four Element Gravimetric Blenders for Main Extruder
• Vacuum Loader for Co-Extruder
• Vacuum Conveying and Loading equipment
• FLX128 - Central Loading Control

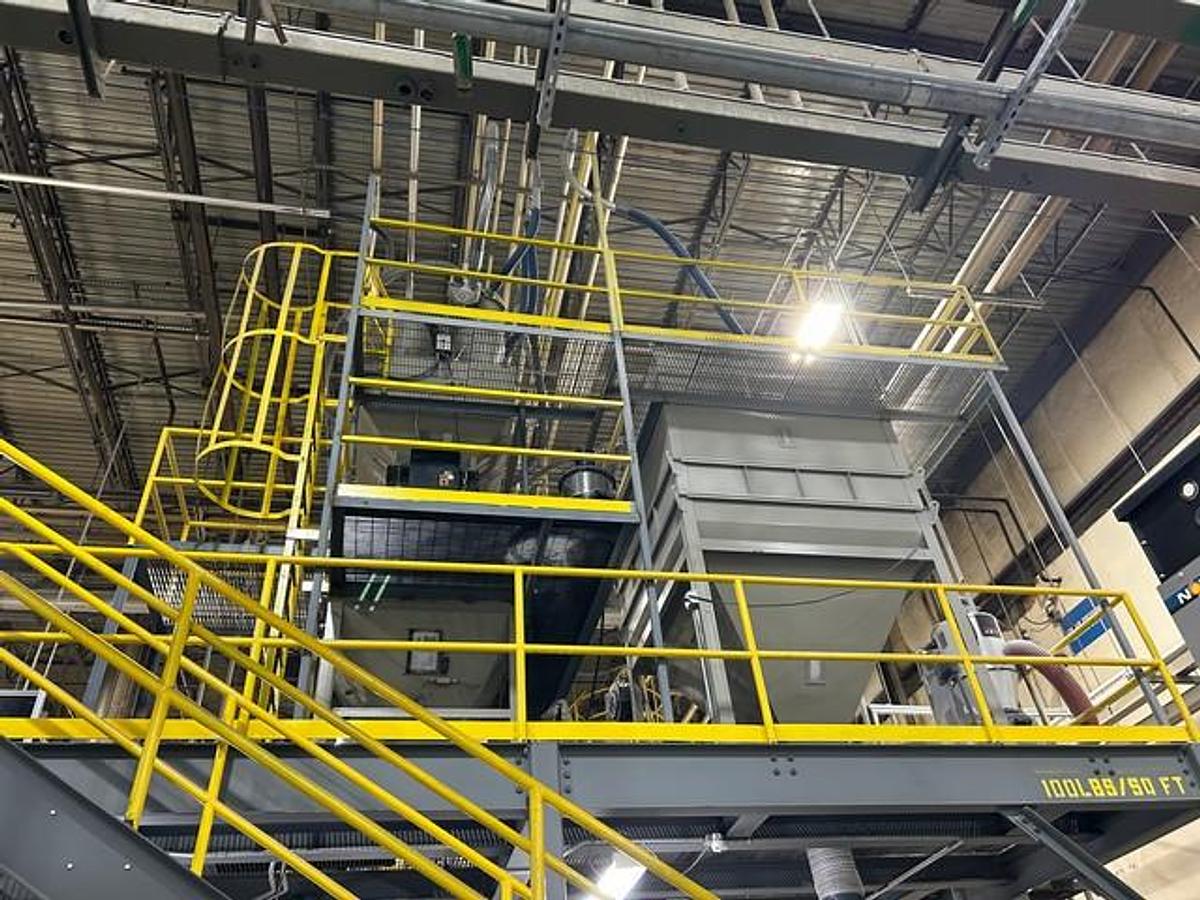

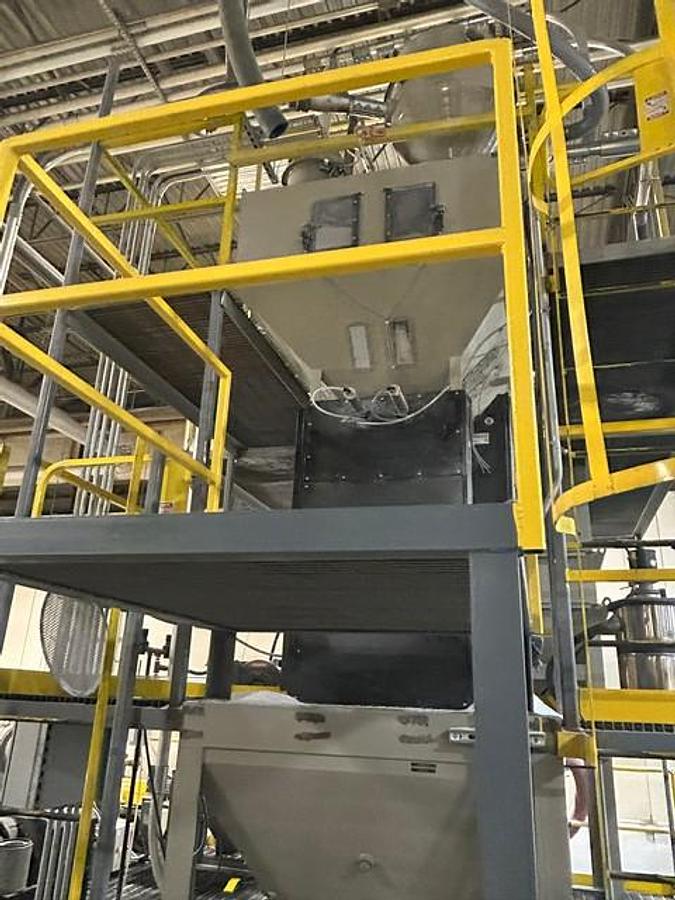

• Material Surge Bin 342 ft3 Usable Capacity
o Included: Tubing, bends & couplings for installation of pumps loaders & dust collectors
o Include the dust eliminator from the feed system

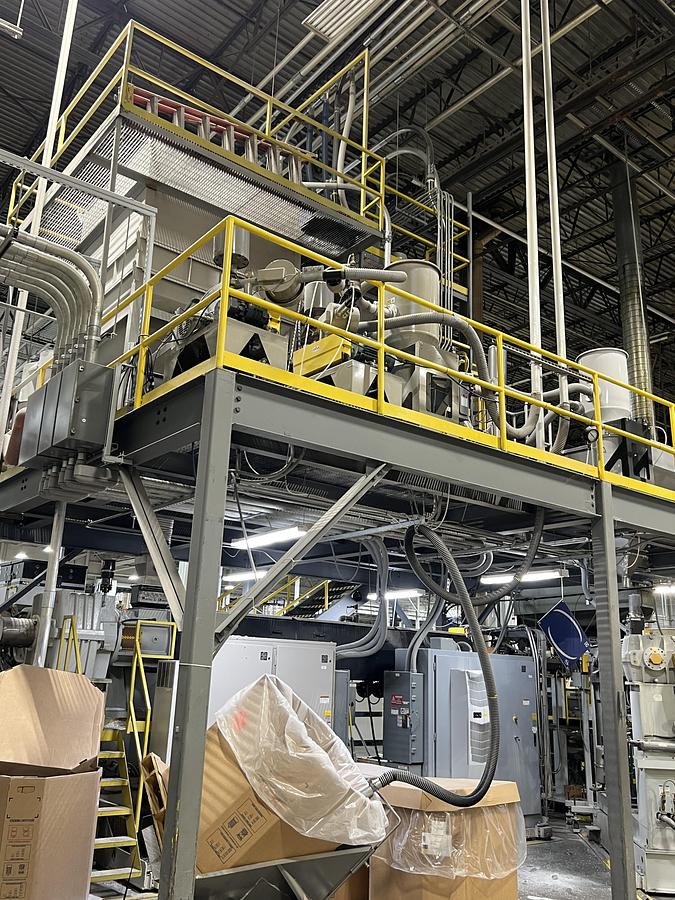

Mezzanine with Stairs for Access to Material Surge Bin
